Features:
- One double MHL / HDMI input and two HDMI inputs
- Any HD input source can produce sound using the SPDIF ort LR output port.
- Support Full HD 1080P, Full 3D, 4K * 2K
- Support ARC function: without adding one additional HDMI cable, you can convert the sound to an AV amplifier using an HDMI cable connected to a TV
- There are three types of audio modes PASS /2.0CH / 5.1CH
- LED indication: when the source or receiver is working, the LED will be on.
- Supports input up to 10 meters using standard AWG26 HDMI cable length, output up to 15 meters using AWG26 cable length
- The IR remote control can switch input sources, and you can also press the switch button on the device to switch input sources.
- No loss of quality
- Installs in minutes
- DC5V / 1A power supply needed
Specifications:
|
HDMI resolution |
4KX2K / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i |
|
Video color format support |
24 bit / deep color 30 bit, 36 bit |
|
Audio output |
L / R + SPDIF |
|
Bandwidth maxtransmission |
300MHz |
|
Maximum transfer rate |
9.0Gps |
|
TMDS input / output signal |
0.5 ~ 1.5 Volts per pp |
|
DDC signal input / output |
5 volt pp (TTL) |
|
The distance to the input cable. |
≤10m AWG26 standard HDMI cable |
|
Distance to the output cable |
≤15 AWG26 standard HDMI cable |
|
Max operating current |
500mA |
|
Power Adapter Format |
Input: alternating current (50 Hz, 60 Hz) 100 V - 240 V; Output: DC5V / 1A |
|
Operating temperature range |
(-10 to +55) |
|
Storage temperature range |
From -20 to +60 |
|
Operating humidity range |
10 to 90% relative humidity (non-condensing) |
|
Storage humidity range |
Relative humidity from 5 to 95% (without condensation) |
|
Size (L x W x H) |
179X67X28 (mm) |
|
Weight |
365g |
Auxiliary equipment:
- User Guide 1pc
- 5V power adapter 1pc
- 1pc remote
- 1pc MHL-HDMI cable (optional)

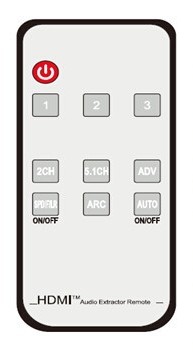

Instructions for use of the IR remote
- First remove the plastic film inserted into the back of the remote control.
- You can directly press the buttons with the numbers 1, 2, 3 to select the desired channel.
- 5.1CH: 5.1 channel mode.
- PASS: Advance Audio Model
- SPDIF / LR: ON / OFF key for SPDIF and LR audio output
- ARC: ARC On / Off key
- Auto: button to automatically detect input sources.
