USB 3.0 to HDMI adapter HDV-U10

Introduction

The USB3.0 HDMI/DVI/Display Port Adapter provides a unique solution to add extra displays to a computer without using traditional graphics card. Users can instantly mirror or extend a desktop onto another display via standard HDMI/DVI/Display Port, such as LCD, CRT, projector and plasma displays. With USB interface plug-and-play and bus power feature, this product brings multi-monitor applications into the mainstream.

Features

• Add-on monitor, LCD or projector through USB3.0 Super-Speed connectivity
• High performance USB Graphics Engine supports resolutions up to 2048 x 1152 @ 32bit, include 1920x1080
• Supports Microsoft Windows operation system
• Supports desktop display mirror, extend mode, multi screen mode and screen rotation mode
• Up to six USB3.0 graphic adapters to work simultaneously
• Automatic recognition of monitor type, resolution, and features
• Hot-swapping / Plug-and-Play of monitors without reconfiguration

System Requirements

• Processors ranging from Atom N270 based PCs,basic single Core CPUs,and of course the latest Dual, Qual Core i3/i5/i7 CPUs.
• For 6 screens where 1 screen can run full screen DVD video: 1.8GHz Core Duo, 1Gb memory.
• Netwrok access for software downloads,or access to a CD-ROM drive.
• At least one USB2.0 or USB3.0 port.
• Computer screen for use with the device.
• Windows 2000/XP (32-bit only), Vista (32/64-bit), 7/8/10 (32/64-bit).
• Intel-Based MAC OS X 10.4.11 or higher, Linux 2.6.32 kernel or higher.

Hardware Installation

• Connect the small end of the USB cable to the USB graphic adapter.Plug in the USB cable to your PC or notebook.
• Select and attach the appropriate adapter for HDMI,DVI output.Connect the required video cable to the device.
• Right-click the UGA Software icon(low right corner) to configure your screens.

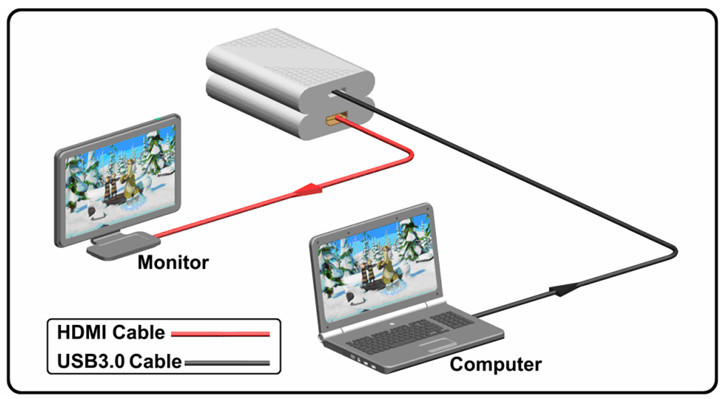

Application Example

USB3.0 to HDMI Adapter

Package

• USB3.0 to HDMI Adapter/ USB3.0 to HDMI Adapter/ USB3.0 to Display Port
• USB3.0 Cable
• Mini Disc
• Operation Manual
