Digital Audio Converter SPDIF/Toslink to Coaxial

FEATURES

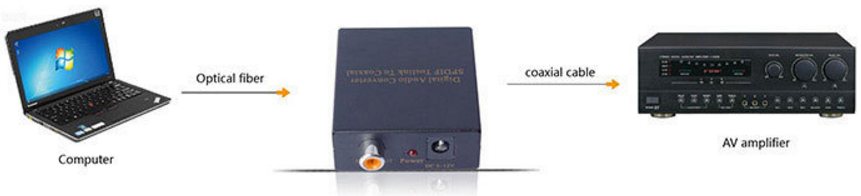

1. One ways of optical fiber signal input convert to one ways of coaxial signal output.( Toslink To Coaxial)
2. One ways of coaxial signal input convert to one ways of optical fiber signal output. (Coaxial To Toslink)
3. Audio format support : LPCM2.0/DTS/Dolby-AC3
4. The highest support 192 KHz sampling rate.
5. Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 30m. (Coaxial To Toslink)
6. Use the standard coaxial cable output can be up to 10m.( Toslink To Coaxial)
7. Wide voltage input, It can support DC 5V~ 12V input
8. Installs in minutes

SPECIFICATIONS:

• Support audio format………………………………………………LPCM2.0/DTS/Dolby-AC3
• Peak wavelength……………………………………………………………650nm
• Max baud rate…………………………………………………………………25Mbps
• Optical fiber cable output distance …≤30m(Use the optical fiber cable loss less the 0.2Db/m)
• Coaxial cable output distance……………………≤10m(Use the standard coaxial cable )
• Max working current…………………………………………………………20mA/12V DC
• Operating Temperature ran……………………………………… (0 to +40℃)
• Operating Humidity range……………………………………………5 to 85%RH (No Condensation)
• Storage Temperature range…………………………………………(-10 to +55℃)
• Storage Humidity range…………………………………………………0 to 90%RH (No Condensation)
• Dimension (L x W x H)……………………………………………………60x48.5x20 (mm)
• Weight……………………………………………………………………………………………75g

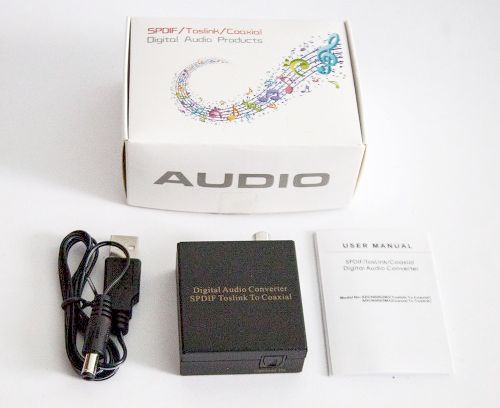

PACKAGING:

1. USB to DC 5.5mm Power cable 1pcs
2. Operation Manual 1pcs
